Skip to product information
  • Sku: HTLF02

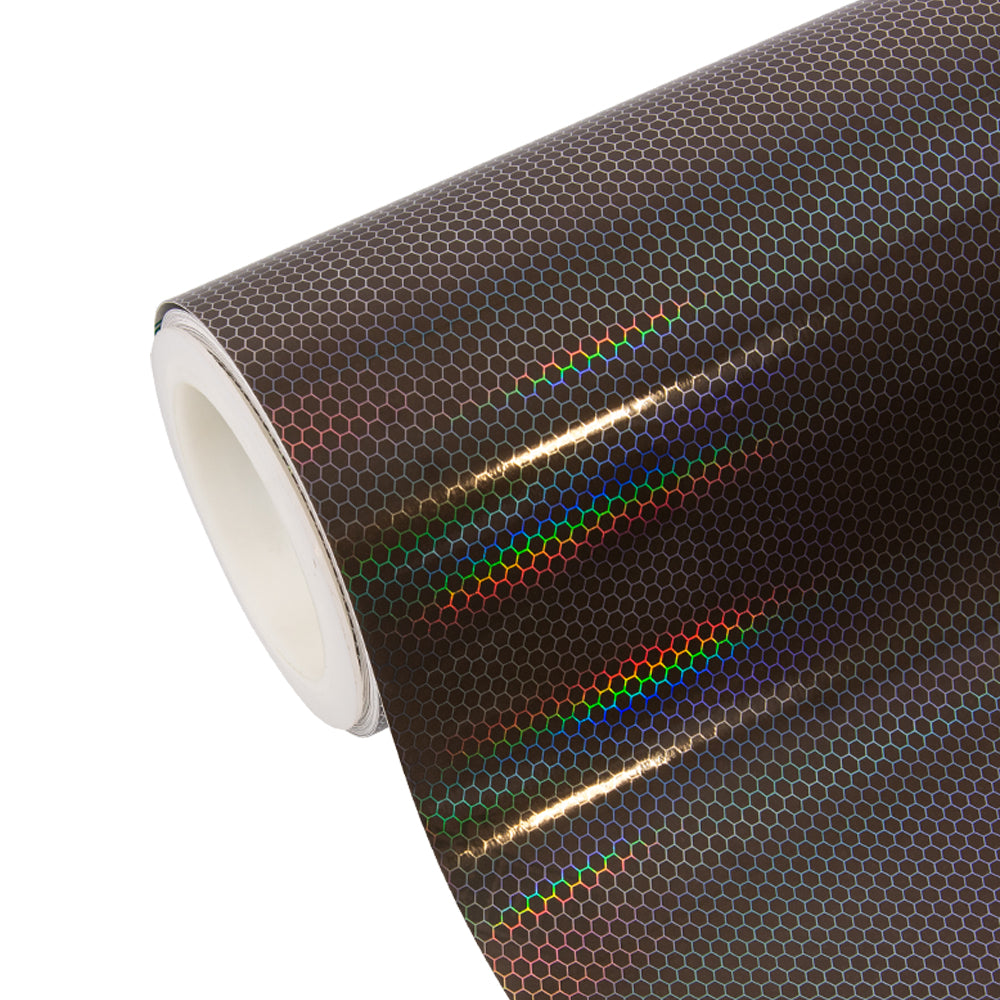

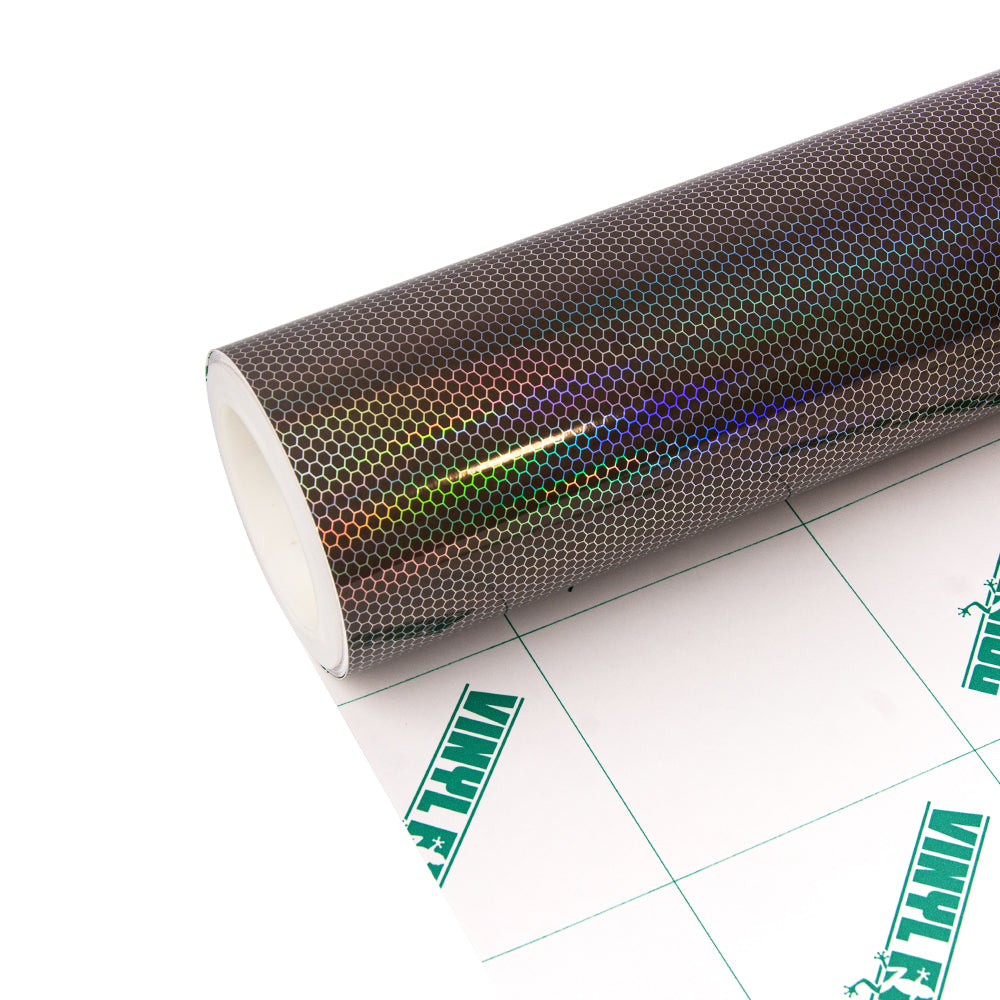

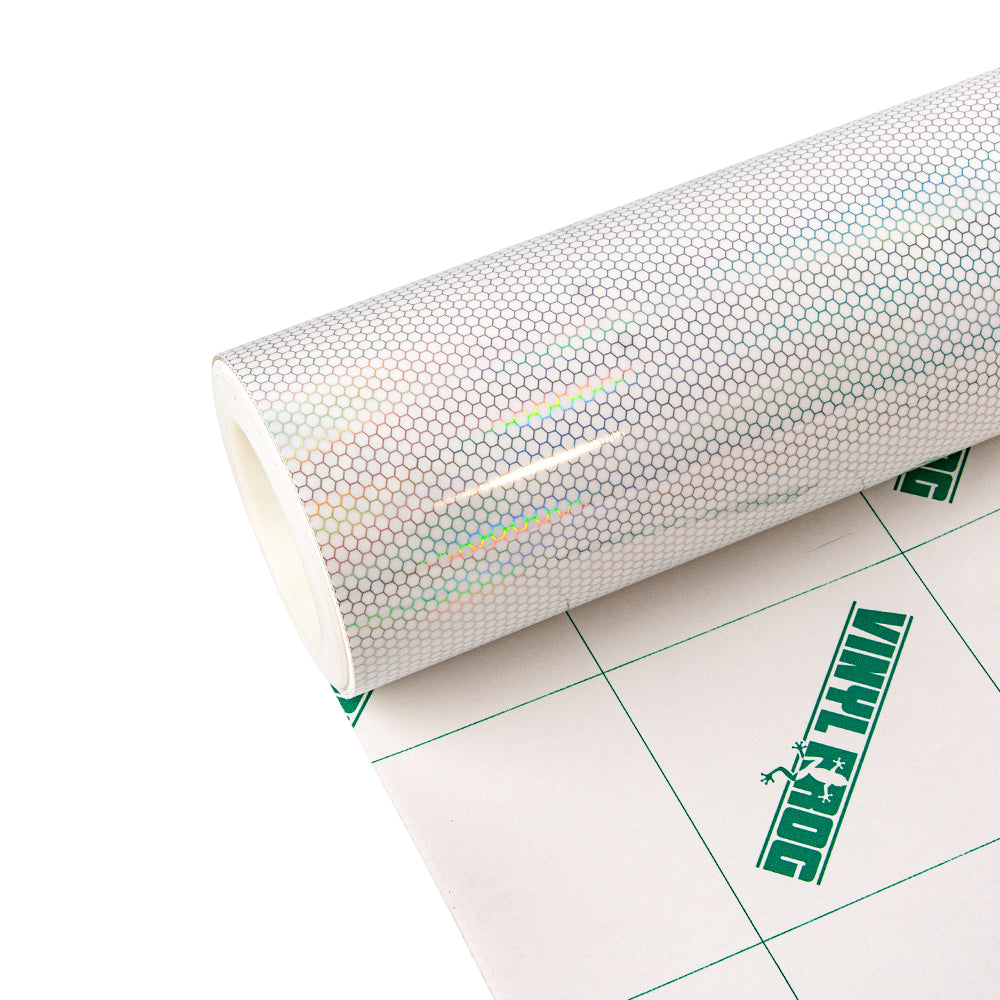

2 in 1 Light Black & Clear Holographic Honeycomb Headlight Film Kit with Air Channel Paper Liner

£162.00 GBP
 per
In stock!
Size

View full details

2 in 1 Light Black & Clear Holographic Honeycomb Headlight Film Kit with Air Channel Paper Liner

Description

Features

  • Premium, long-lasting, and high-performance film.
  • Smooth, glossy, holographic finish.
  • Distinct honeycomb pattern.

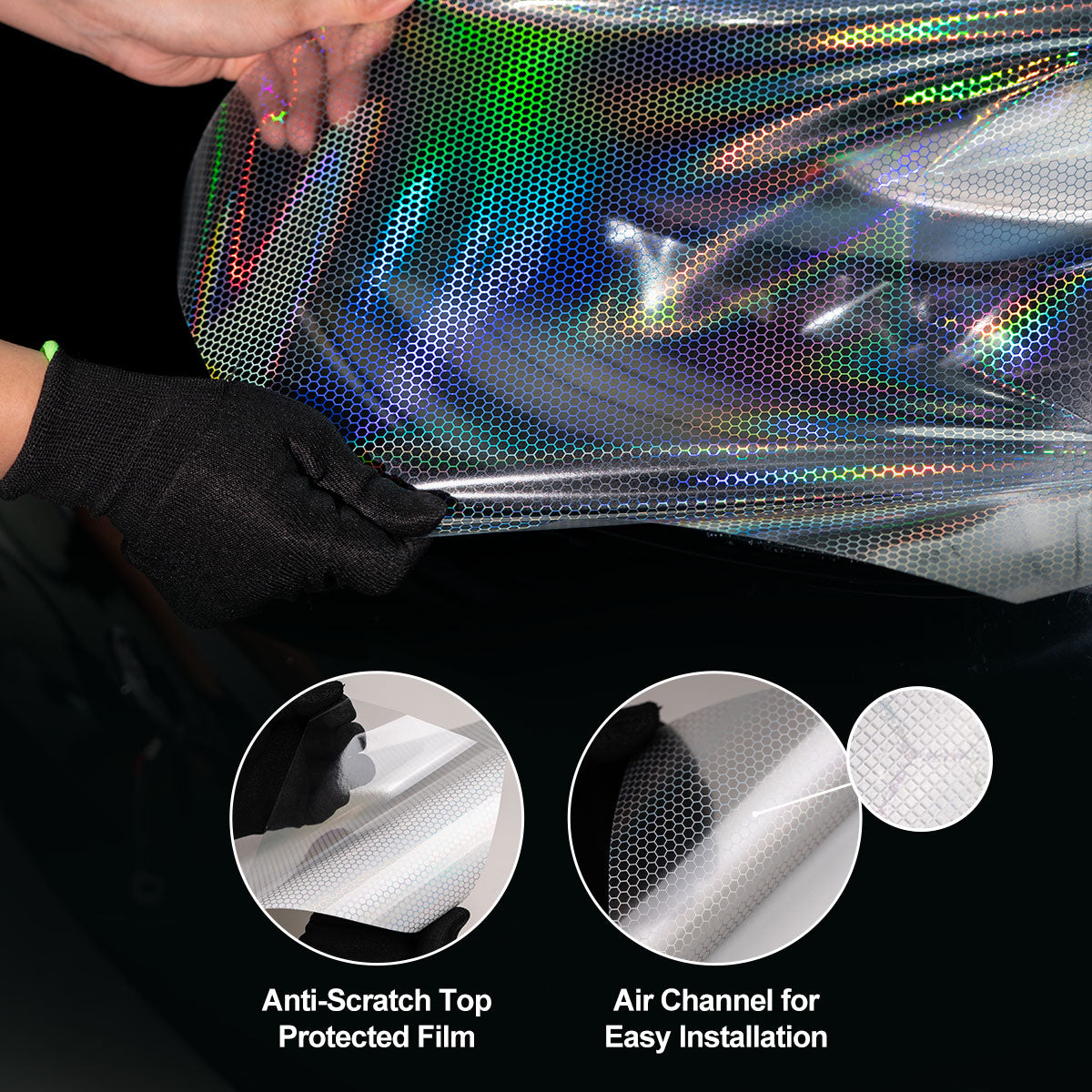

  • Equipped with air-release channels.
  • Resistant to UV, heat, stains, and scratches.
  • Eco-friendly, high-grade tint.
  • Water and weatherproof.
  • Easy to apply and maintain.
  • Equipped with a top protective film.
  • Acrylic-based, repositionable ultra-clear adhesive.
  • Easy to reposition and slide.
  • Features air channel paper liner and self-healing technology.

Structure

Composed of 4 layers: Top Protected Film, Polymeric Face Film, Acrylic Adhesive, Release Liner

Specifications

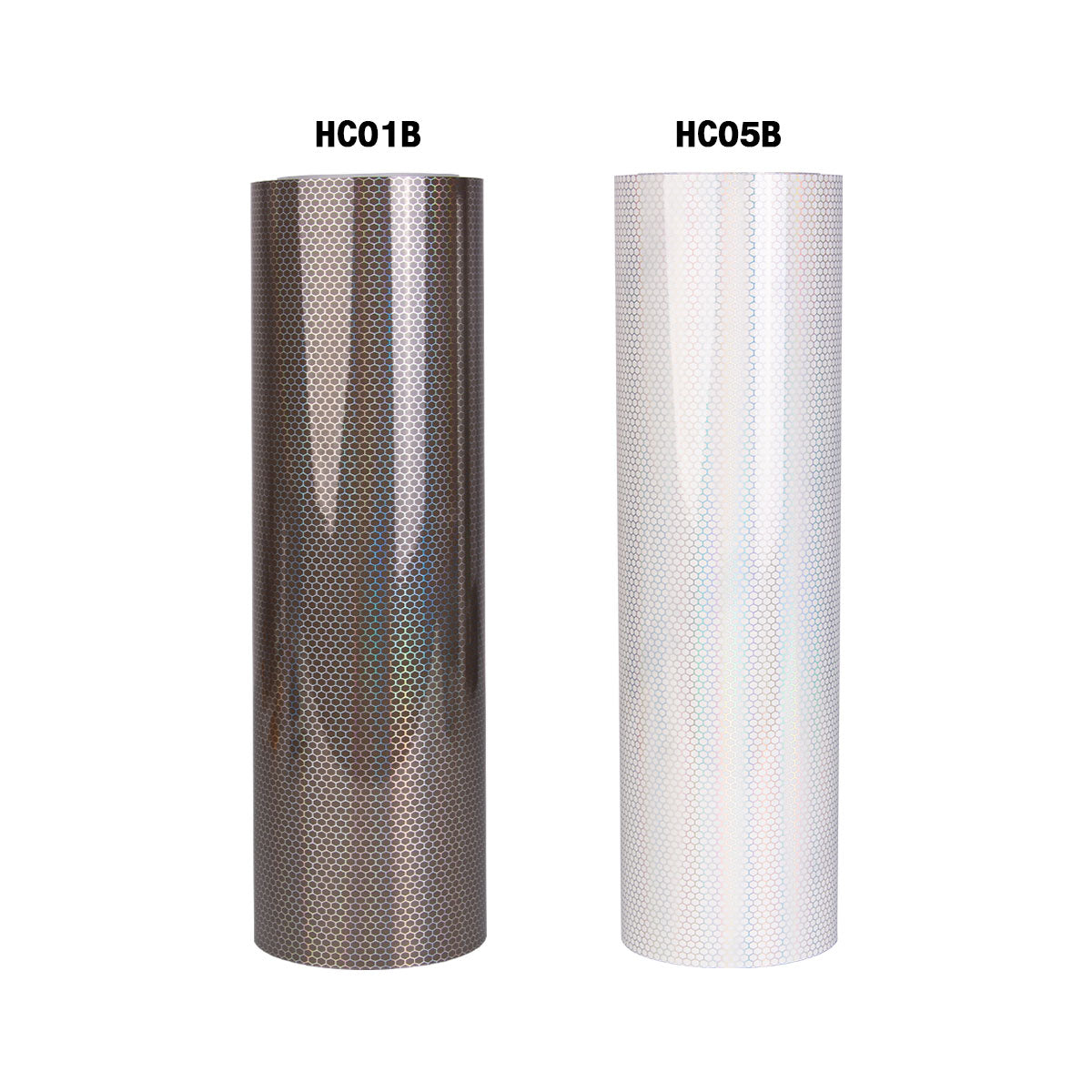

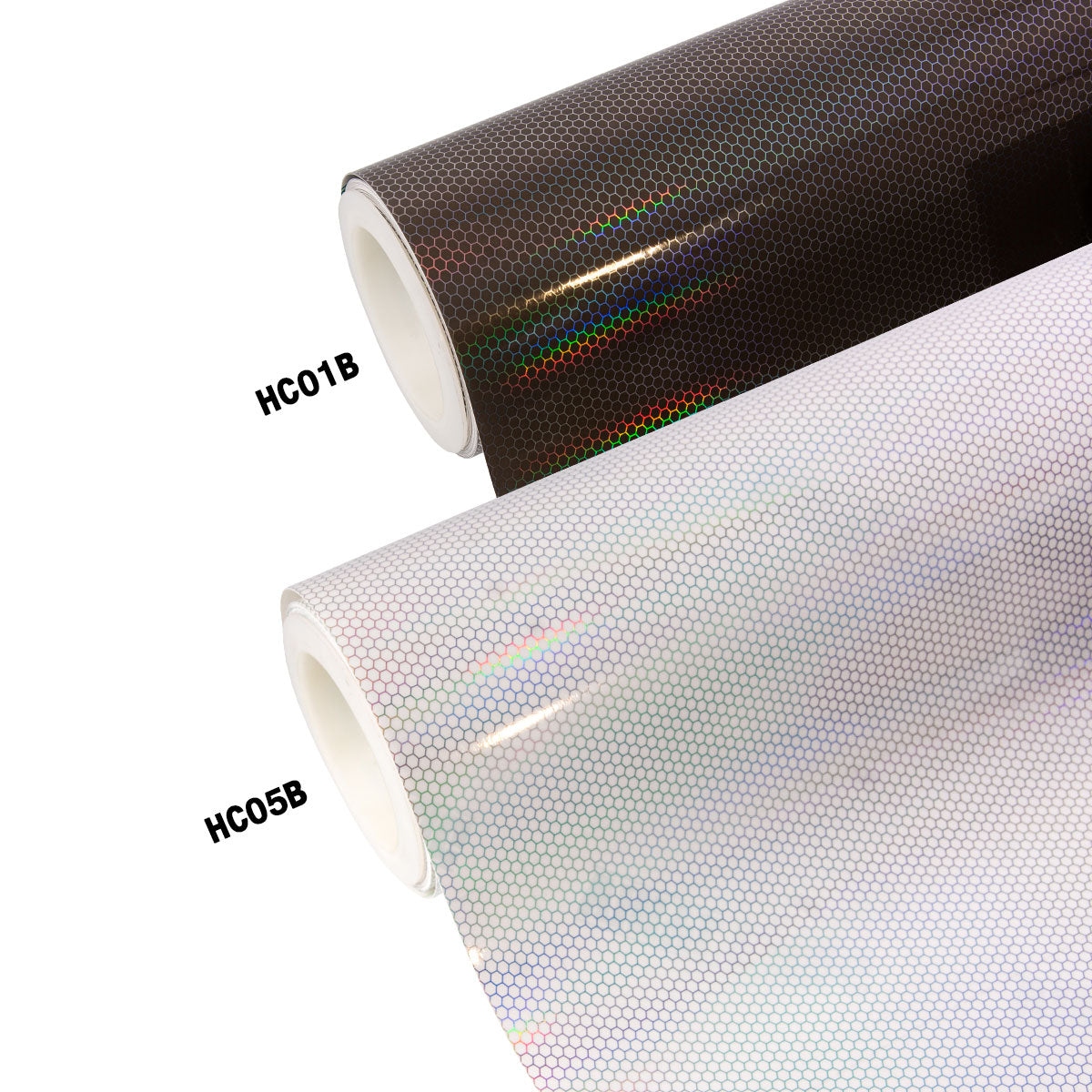

  • Set of 2 Colors: Light black, Clear/Transparent Color
  • Size: 32ft(L)x 1.3ft(W)
  • Lifetime: 2 years (Based on vertical exposure).
  • Type: Automotive, architectural, marketing applications, indoor & outdoor.
  • Pattern: Honeycomb.
  • Set Packaging: Roll.
  • Application Method: Dry application provides better results.

Video

Physical Properties

Classification Unit Spec Remark
Thickness Top protected film um 16um±5 PET
Face Film um 100um±5 /
Acrylic Adhesive um 20um±2 Solvent-based
Release liner um 180um±2% Paper Liner
Width - cm 30/40±0.01% 1.3ft
Length - m 10±1% 32ft
Surface - / Glossy /


Physical Performance

Features Test Method Results
Gloss (60°) GB 8807 92.3
VLT / 92% (Clear)
81% (Light Black)
Peel Strength
N/25mm
180° 15
Self-healing Layer Elongation at Break GB/T 1040.1 112
Face Film Elongation at Break GB/T 1040.1 309.5
Tear Strength GB/T529 92.7 KN/m
Tensile Strength GB/T 1040.1 21.6 Mpa
100% Modulus GB/T 1040.1 9.1 Mpa
Anti-yellowing / ΔE< 1.2
Adhesive residue / <3%
Release force (N/25mm) paste on steel board, 90° 26℃ and 60%, GB2792 0.16
Initial tack (g/25mm) under 24℃ and 26%, GB31125-2014 860
180° Peel Strength (N/25mm) 10 - 13 12
Holding power(h) paste on steel board, hang on by 25mm*25mm*1kg weight under 29℃ and 55%, GB/T4851-1998 48H No Peeling
Aging Test  65℃ and 7 days No adhesive residue under 20 times wrapping
Application Temperature / +20℃ to +30℃
Service Temperature / -50℃ to +110℃
Recommended Shelf Life 72°F (22°C) and 50% RH 2 year
Durability / 2 year



Shelf Life

2 years from date of purchase when stored at 50°F to 80°F (15°C – 25°C) and 45% to 50% relative humidity. The optimum recommended storage conditions are 72°F (22°C) and 50% relative humidity.

Important Notice

Information on physical and chemical characteristics and values in this document are based upon tests we believe to be reliable and do not constitute a warranty. They are intended only as a source of information and are given without guarantee and do not constitute a warranty. Purchasers should independently determine, prior to use, the suitability of this material to their specific use. All technical data are subject to change. In case of any ambiguities or differences between the English and foreign versions of this document, the English version shall prevail and lead.

Warranty, Limited Remedy, And Disclaimer

Unless an additional warranty is specifically stated on the applicable VinylFrog product packaging or product literature, VinylFrog warrants that each VinylFrog product meets the applicable VinylFrog product specification at the time VinylFrog ships the product.VinylFrog MAKES NO OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR ANY IMPLIED WARRANTY OR CONDITION ARISING OUT OF A COURSE OF DEALING, CUSTOM OR USAGE OF TRADE. If the VinylFrog product does not conform to this warranty, then the sole and exclusive remedy is, at VinylFrog’s option, replacement of the VinylFrog product or refund of the purchase price.

Limitation Of Liability

Except where prohibited by law, VinylFrog will not be liable for any loss or damage arising from the VinylFrog product, whether direct, indirect, special, incidental or consequential, regardless of the legal theory asserted, including warranty, contract, negligence or strict liability.
