Features
- Matte Smooth Finish
- Hydrophobic Properties
-
Premium quality wrap
-
Heat Activated Self-Healing Topcoat
- Maximum Durability & Protection
- Scratch and stain resistant
- Durable and long-lasting
- Hassle-free installation and removal
- Resistant to yellowing and cracking
-
Transparent, having superior clarity without the orange peel effect.Ā Ā
Specifications
-
Available Sizes:
- 5ft x 49.21ft, 32.8ft, 16.4ft, 9.84ft, and 3.28ft.
- Finish: Matte Smooth Finish.
-

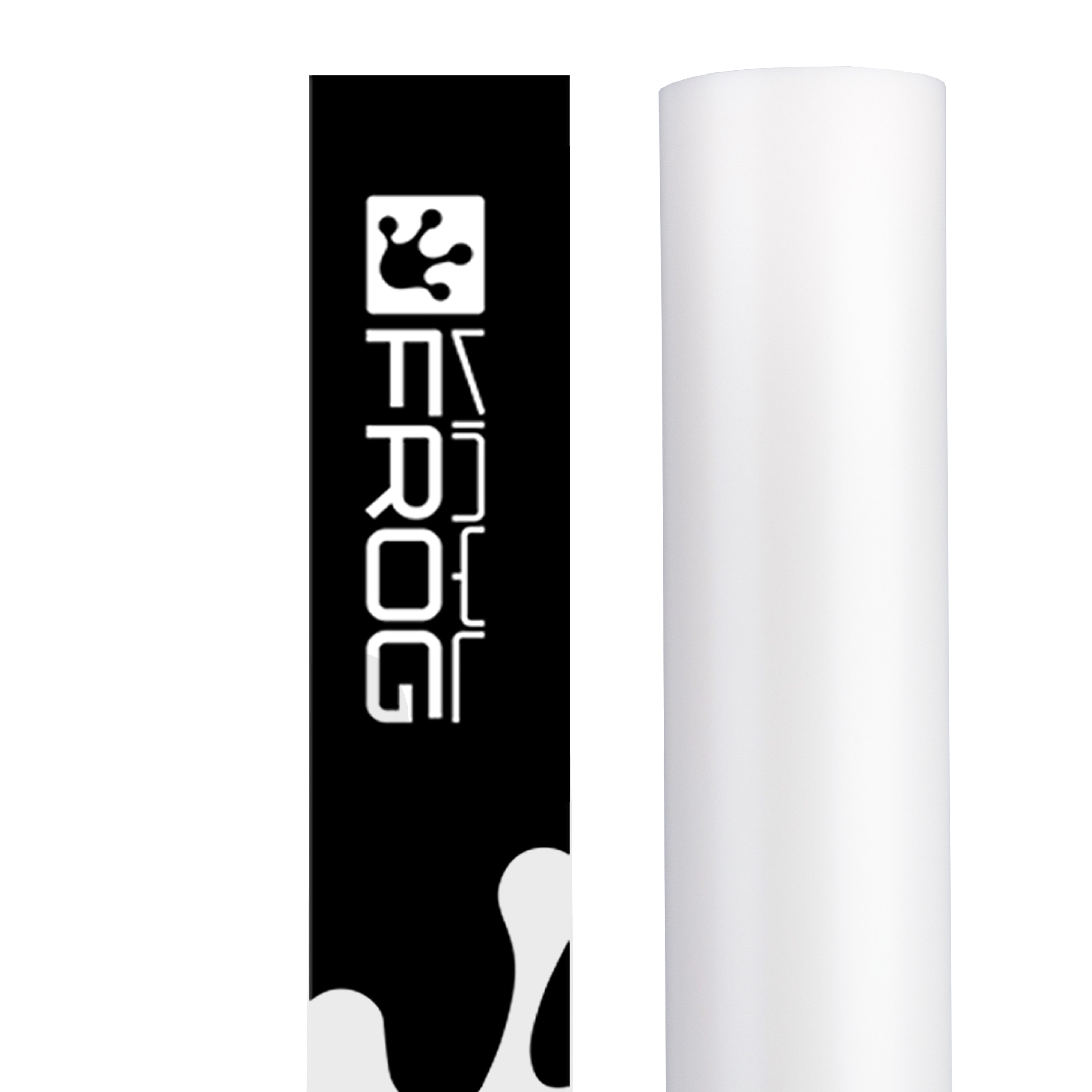

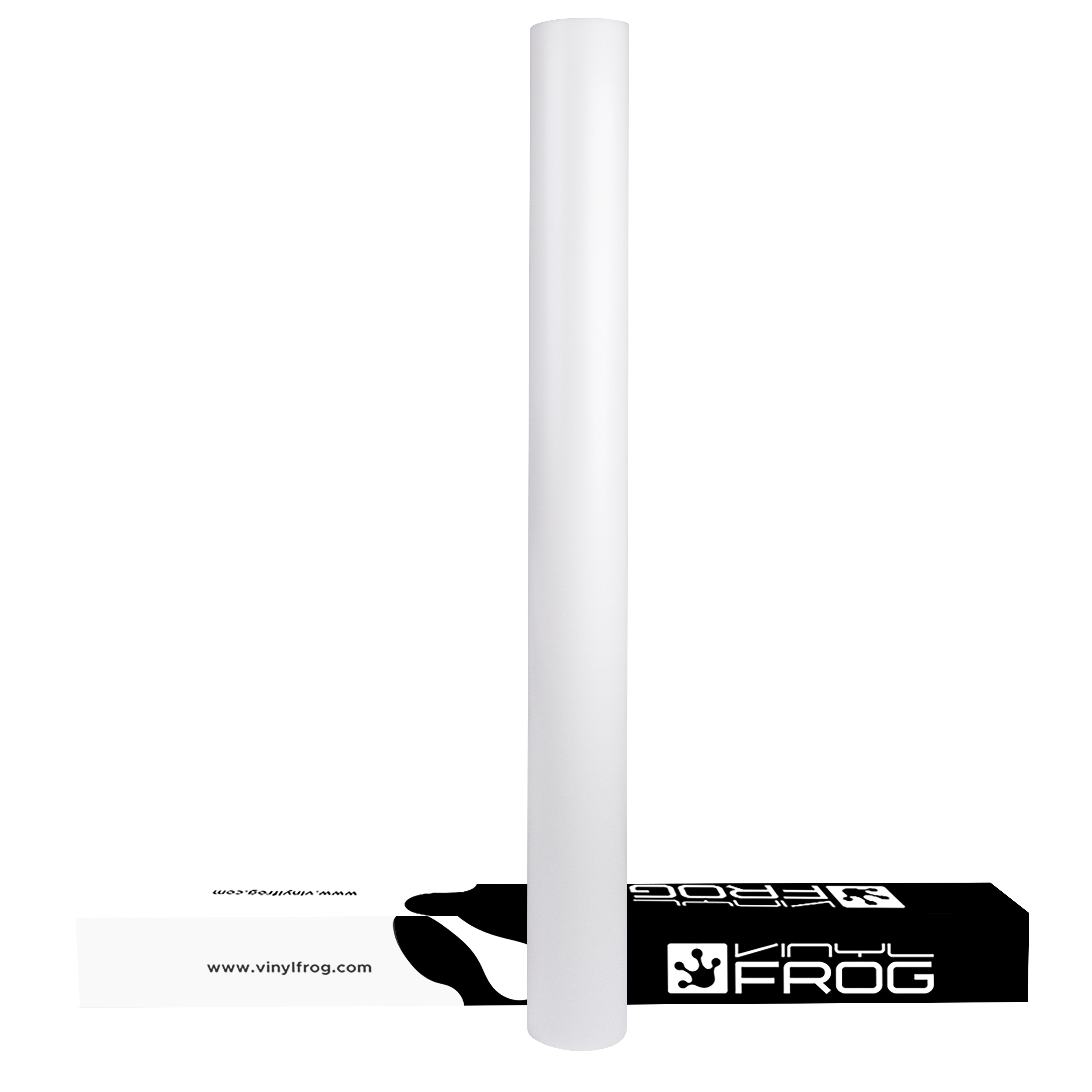

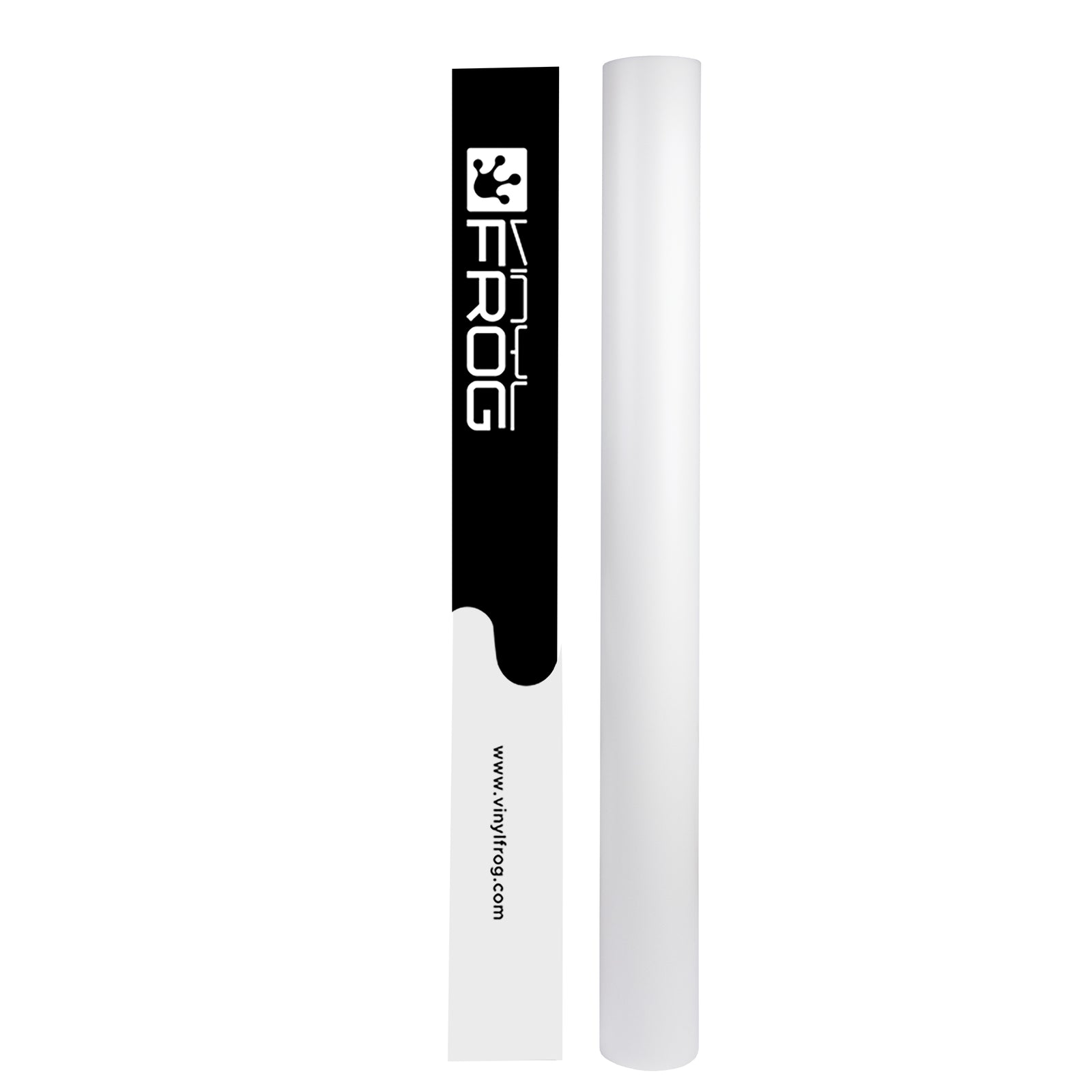

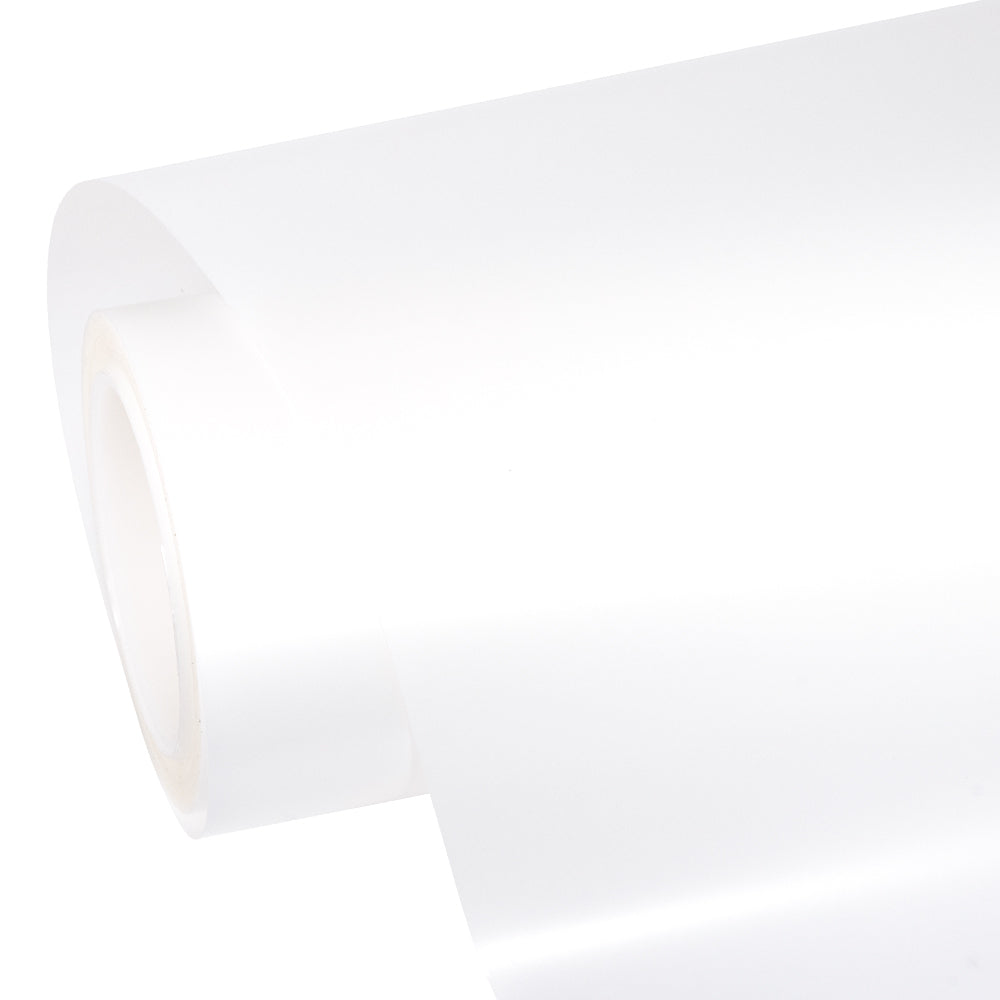

Packaging: Roll in a sturdy box.
Product Structure
ā² Standard Size & Appearance
| Classification |
Unit |
Spec |
Remark |
| Thickness |
Self-healing Layer |
um |
10Ā±2% |
/ |
| Face Film |
um |
150Ā±8 |
Termoplastic Polyurethane |
| Acrylic Adhesive |
um |
28Ā±2% |
Solvent based |
| Release liner |
um |
75Ā±2% |
Satin Semi-transparent |
| Surface |
ļ¼ |
Matte &Transparent
|
Super Matte without Orange Peel |
| Width |
m |
1.52Ā±0.01% |
4.98ft |
| Length |
m |
15Ā±1% |
49.21ft |
Physical Properties
| Features |
Test Method/Conditions |
Results |
| Gloss(60Ā°) |
GB 8807 |
91.5 |
| Initial Tack(gf/inch) |
GB/T2792 |
1500 |
| Holding Power(gf/inch) |
GB/T2792,24h |
1925 |
| Self-healding Layer Elongation at break |
GB/T 1040.1 |
70 |
| Face Film Elongation at break |
GB/T 1040.1 |
172 |
| Tear Strength |
GB/T529 |
78.7 KN/m |
| Tensile Strength |
GB/T 1040.1 |
28 Mpa |
| 100% Modulus |
GB/T 1040.1 |
6.8 Mpa |
| Anti-yellowing |
During durability period |
Level B:ĪE< 2.5 |
| Hydrophobic Property |
/ |
R9-R10 |
| Release Force(N/25mm) |
paste on steel board, 90Ā° 26ā and 60%, GB2792 |
0.25 |
| Humidity Resistance |
120 hours exposure |
No Detrimental Effect |
| Salt spray Resistance |
120 hours exposure |
No Detrimental Effect |
| Water Resistance |
120 hours immersion |
No Detrimental Effect |
| Chemical Resistance |
1-hour diesel oil immersion, 4 hours antifreeze immersion |
No Detrimental Effect |
Aging Test 1
|
70ā and 7 days
|
No adhesive residue with heat |
| Aging TestĀ 2 |
90ā and 7 days |
No adhesive residue without heat |
| Application Termperature |
/ |
+20ā to +30ā |
| Service Temperature |
/ |
+50ā to +80ā |
| UV Resistance |
/ |
90% |
| Light Transmission |
/ |
90% |
| Recommended Shelf Life |
72Ā°F (22Ā°C) and 50% RH |
2 years |
| Durability |
/ |
3 years |
| Time limits |
MustĀ useĀ itĀ withinĀ 3Ā monthsĀ afterĀ receivingĀ theĀ wrapĀ film |
3 months |
Recommendation
Recommended application tools: Squeegee, buffer, knife, masking tape, heat gun, magnets, gloves, IRR thermometer,sprayer, towel,installation liquid
Application method: Standard methods for Paint Protection Film. No overstretching & overheat and Post heating is necessary.
Post-heating temperature: 110Ā°C flat surfaces, 130Ā°C curves, and overlaps
Aftercare: PH neutral, Avoid wax or solvents
Durability
The durability is based on South China exposure conditions. Actual performance life will depend on substrate preparation, exposure conditions and maintenance of the marking. For instance, in areas of long high temperature exposure and in industrially polluted areas or high altitudes, exterior performance will be decreased.
